This instruction show you guide on how to use RT809F BIOS programmer to fix computer motherboard MX25L12835F error.
Procedures:
Remove motherboard from computer

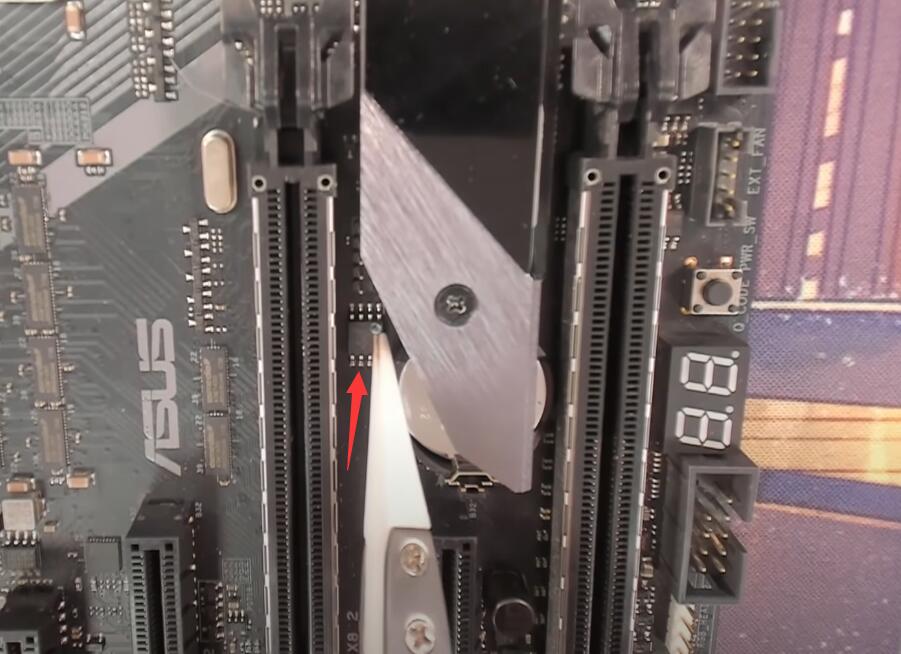

Locate MX25L12835F chip on motherboard

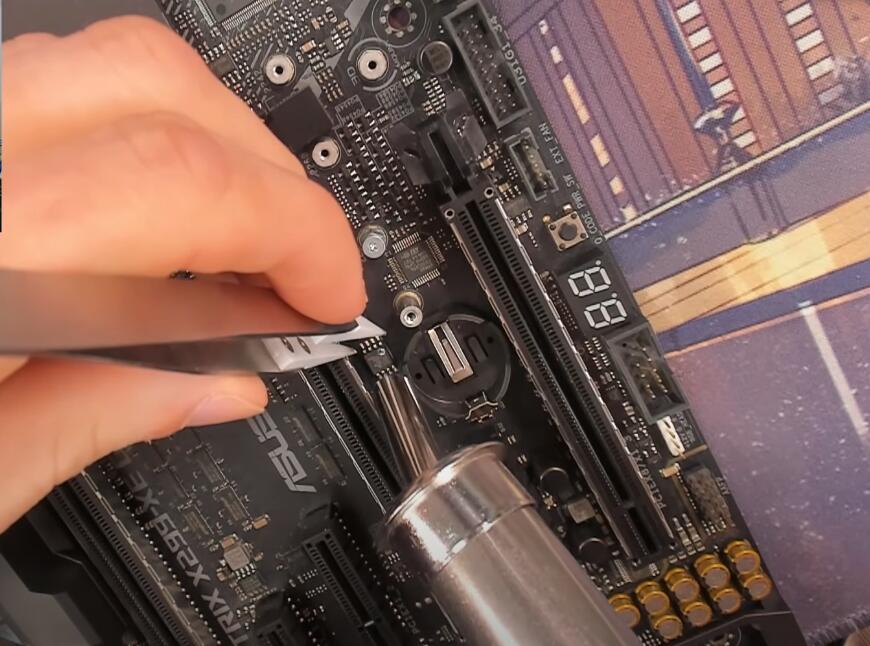

User soldering gun to remove MX25L12835F chip from motherboard
Put MX25L12835F chip on SOP 8 socket
Install SOP 8 socket on RT809F programmer
Connect RT809F programmer to PC

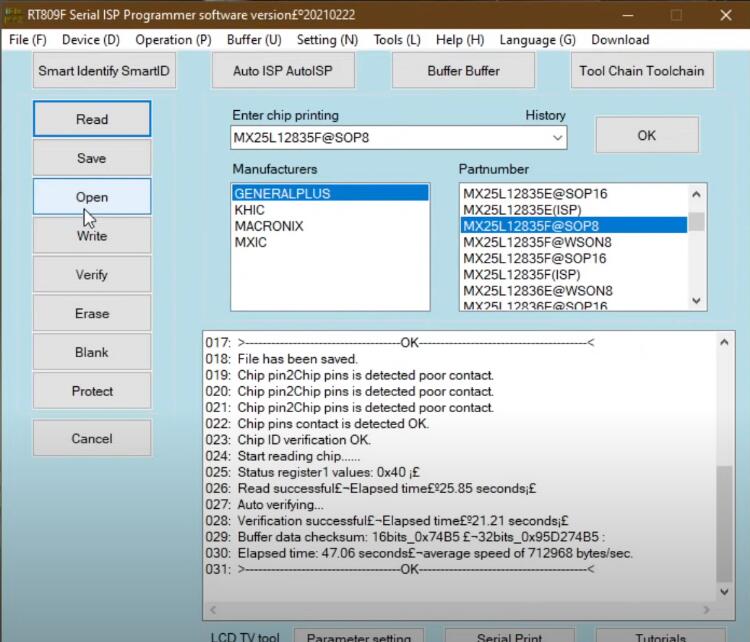

Run RT809F programmer software on your PC desktop
Click “GENERALPLUS”

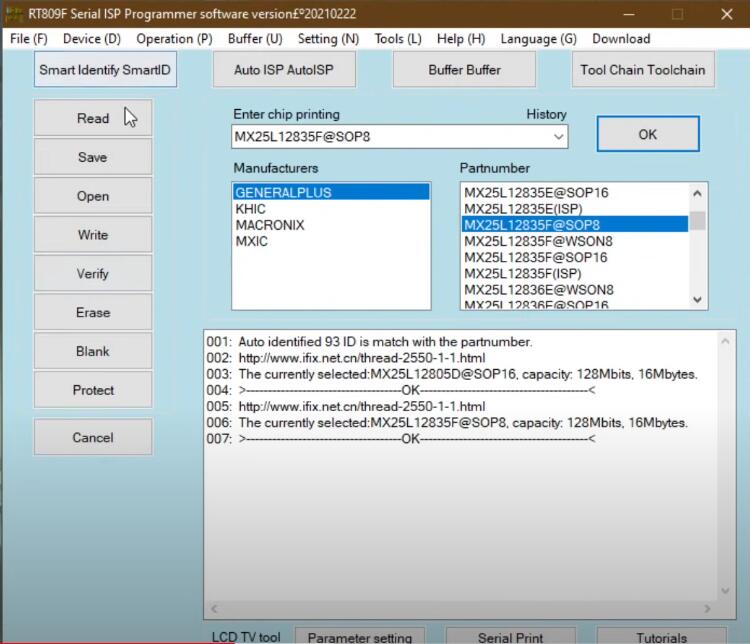

Then select “MX25L12835F@SOP8”
After then click “Read”

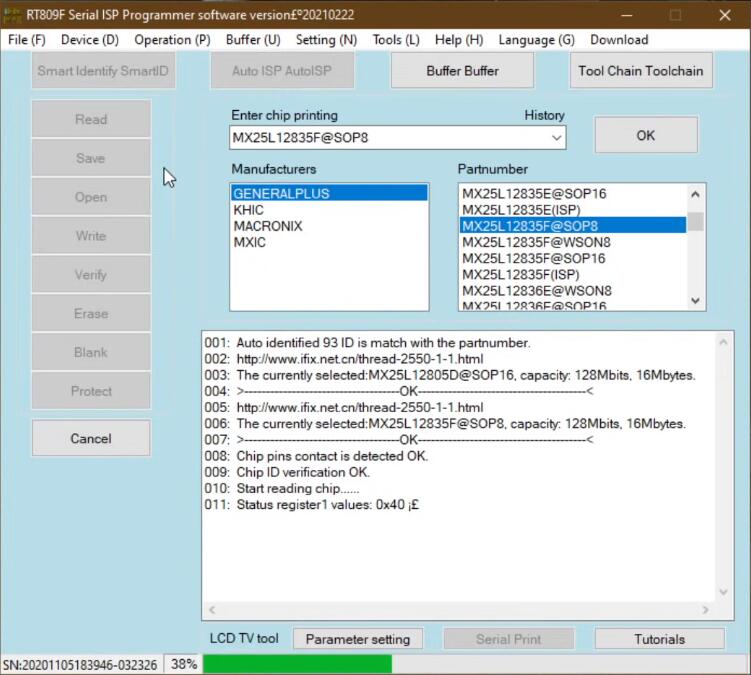

Wait for reading processing

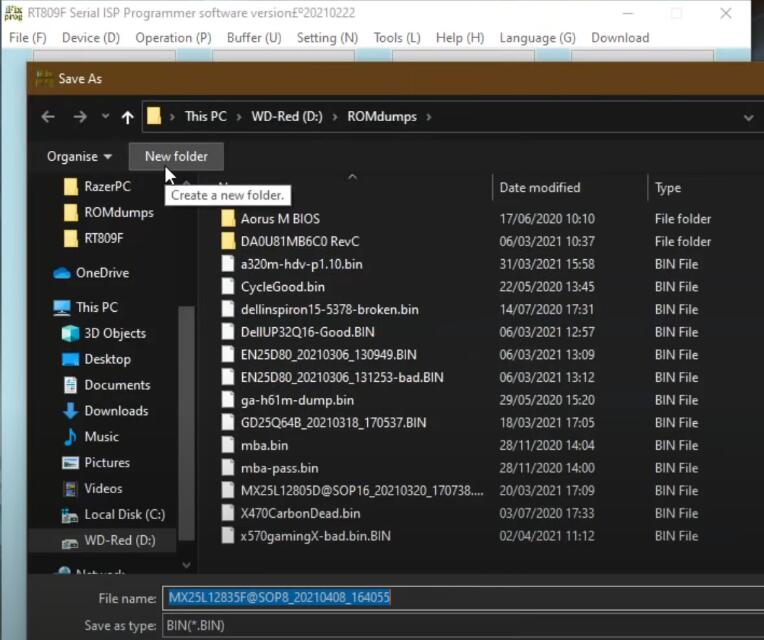

After reading done,it will pop-up window automatically to ask to input file name to save it on your PC.This step in case you damaged original file,then you can restore
The computer motherboard is Asus X299-XE Gaming,search it on Google

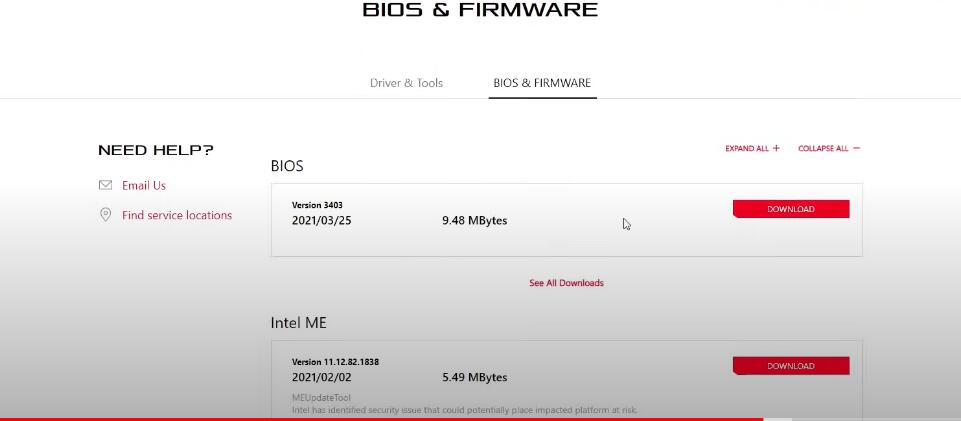

Then download new file for reprogramming

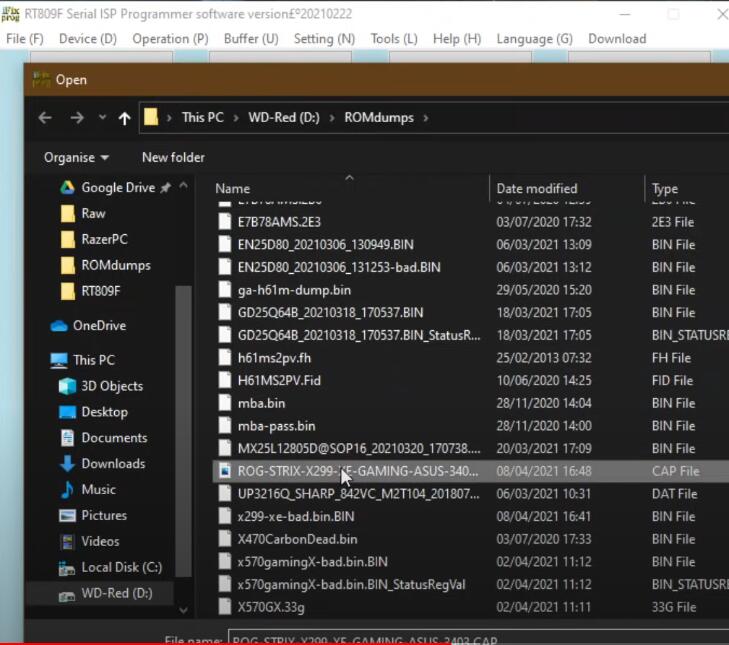

Back to RT809F programmer to click “Open”
Select “ROG-STRIX-X299-XE-GAMING-ASUS-340..” file that you download before

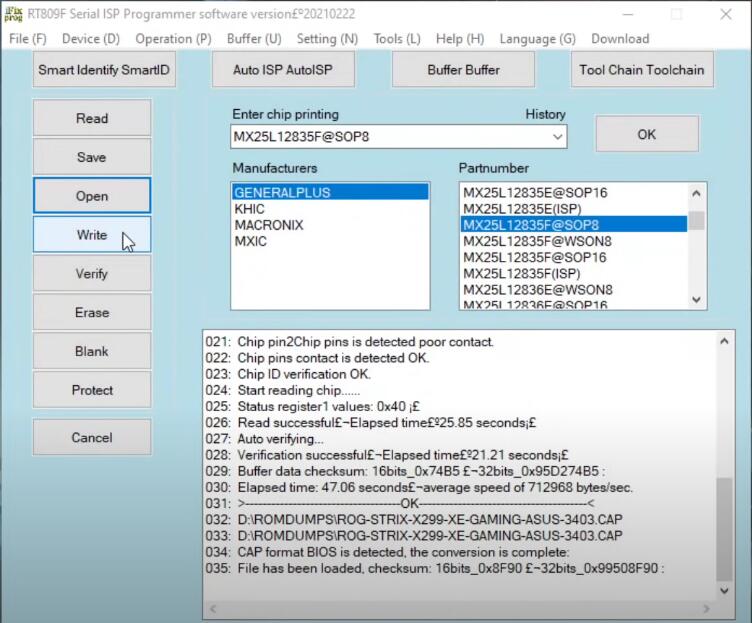

Click “Write”

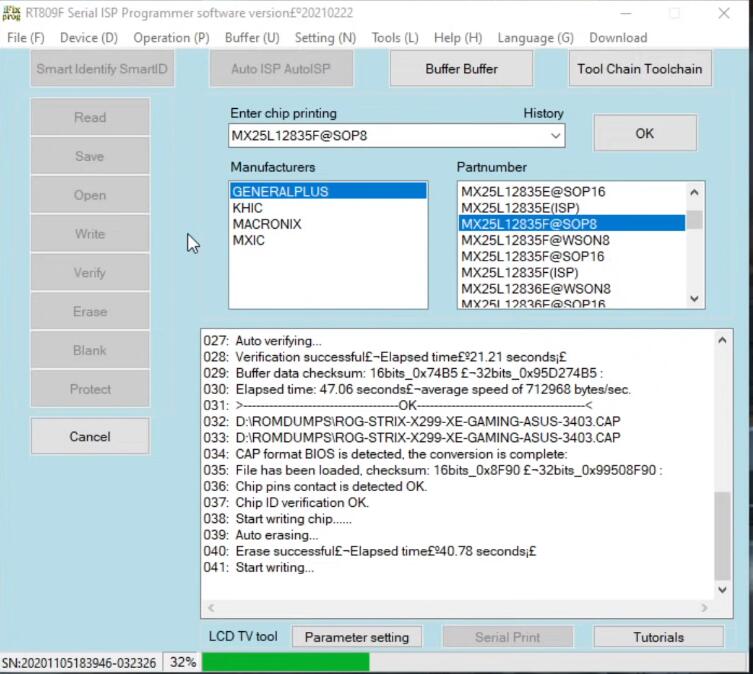

Wait writing processing
When it done,power off RT809F programmer and remove MX25L12835F chip
Solder it back on motherboard and then test it.
