This is a example show you guide on how to use EZP2019 programmer to program/write MX25L3206E chip.
Procedures:

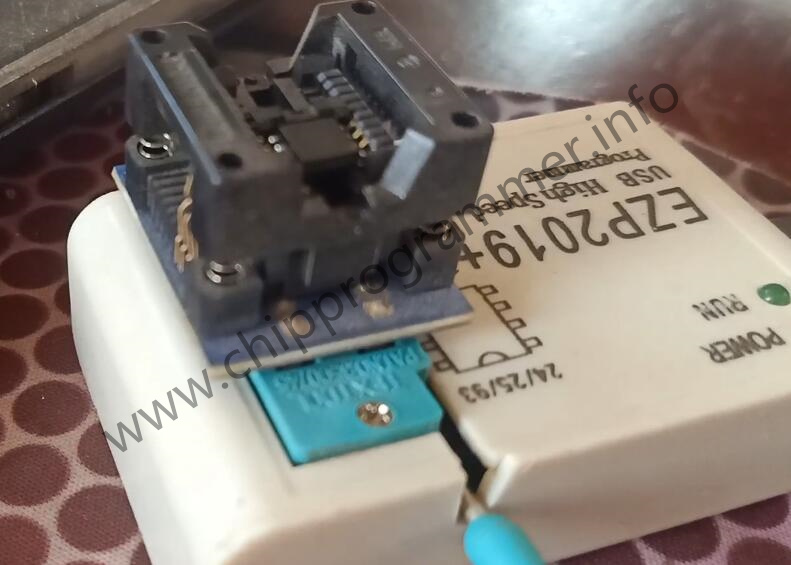

Put MX25L3206E chip in the socket adapter
Install the socket adapter on EZP2019 programmer
Connect the cable between EZP2019 programmer and PC
Then run EZP2019 software

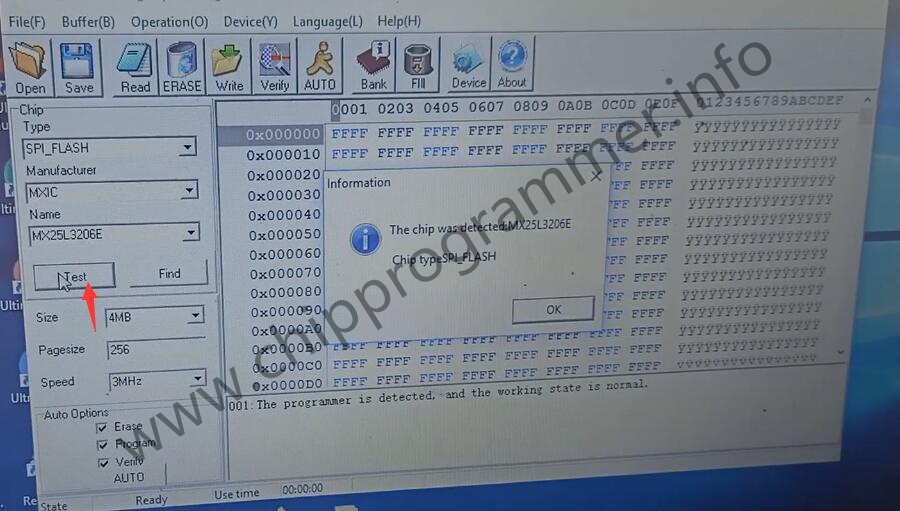

Click “Test” button,it will detect MX25L3206E chip type

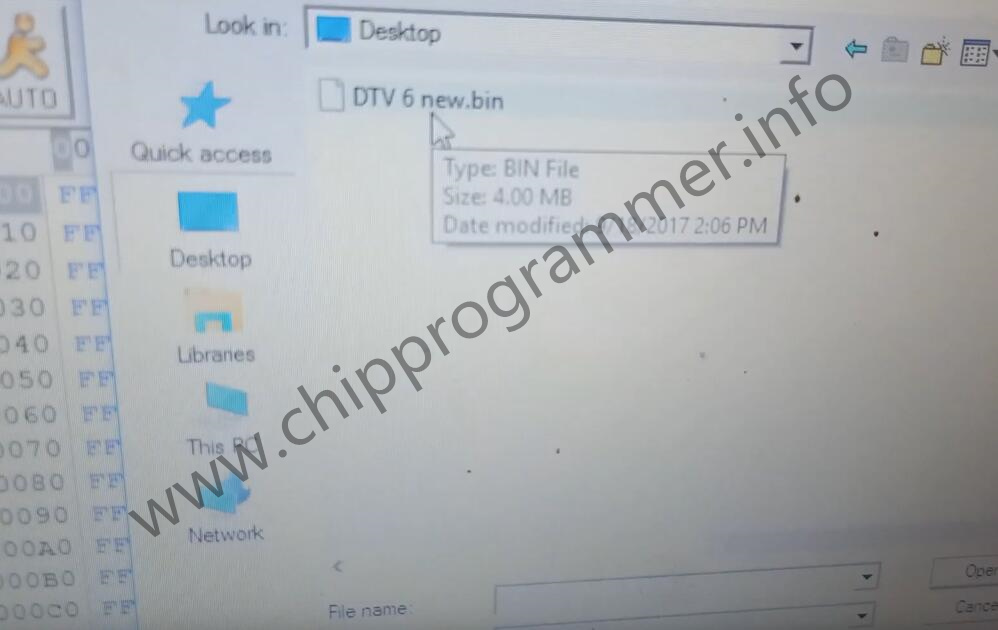

Then click “Open” button on the menu bar to select the working bin file you want to burn in the MX25L3206E chip.

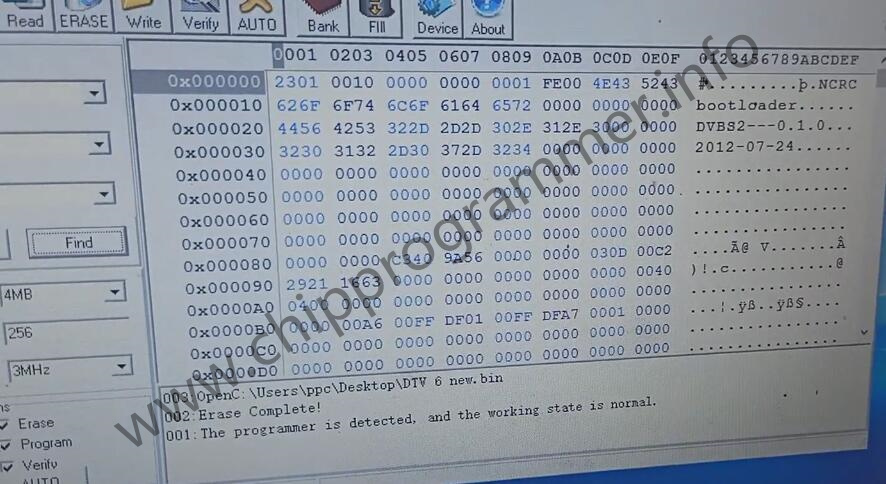

Detail message about the bin file will show on the software window

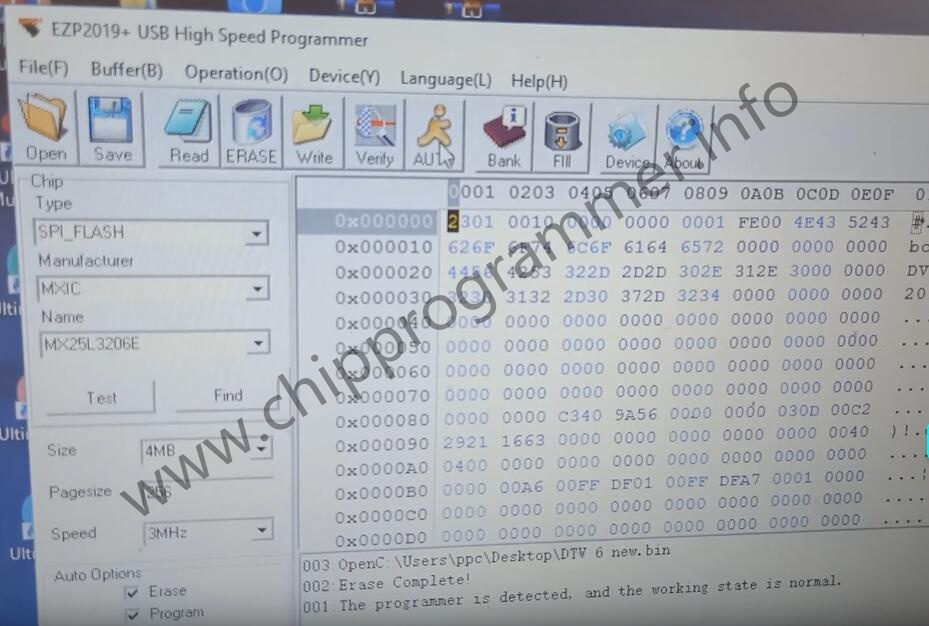

Click “AUTO” button on menu bar

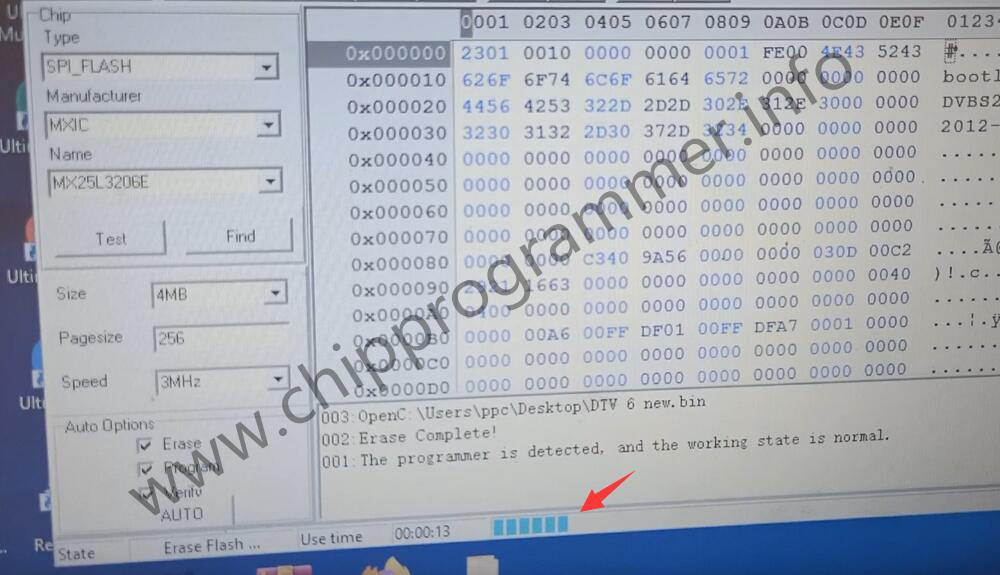

It will perform erasing,programming and verifying automatically
Now just wait processing

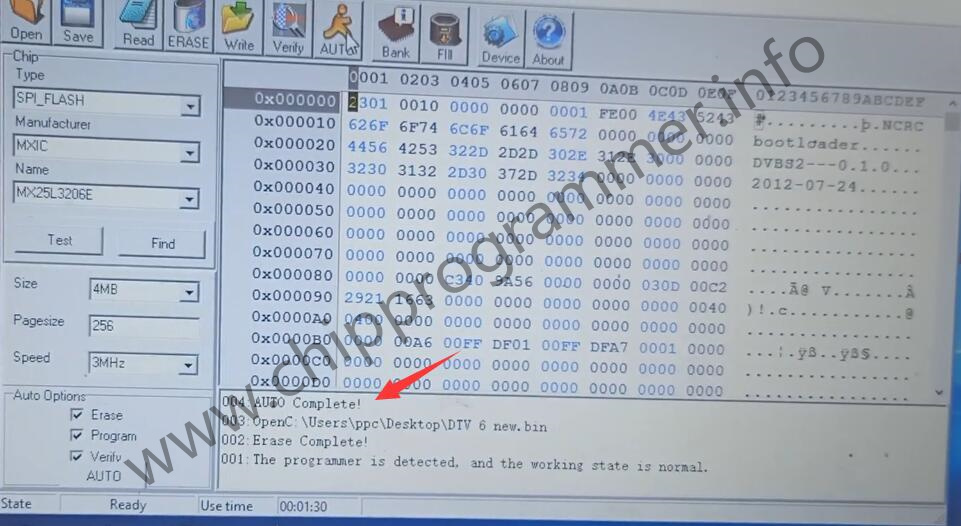

When last step done,it will show you “AUTO Complete”
