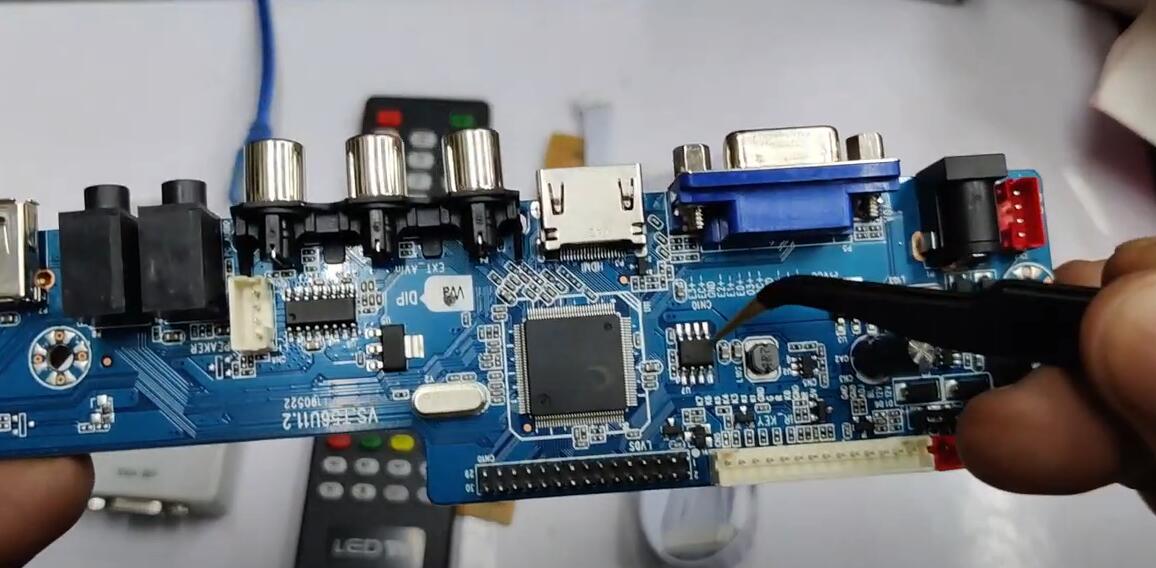

This instruction show you guide on how to use RT809F programmer to program/flash VS T56U11.2 TV motherboard by VAG cable.

RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (1)



Procedures:

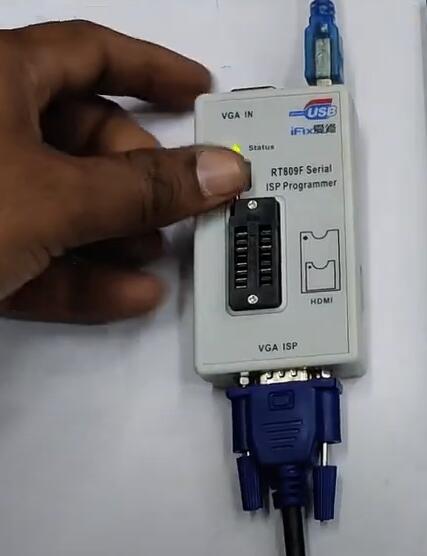

Connect RT809F programmer to T56U11.2 TV motherboard by VAG cable

RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (2) RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (3)

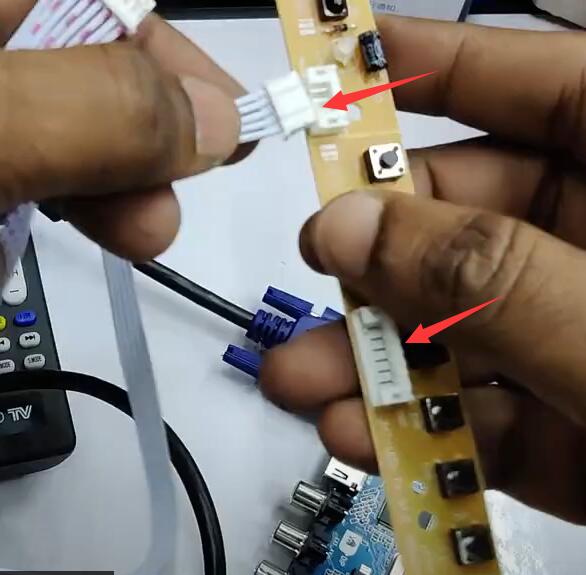

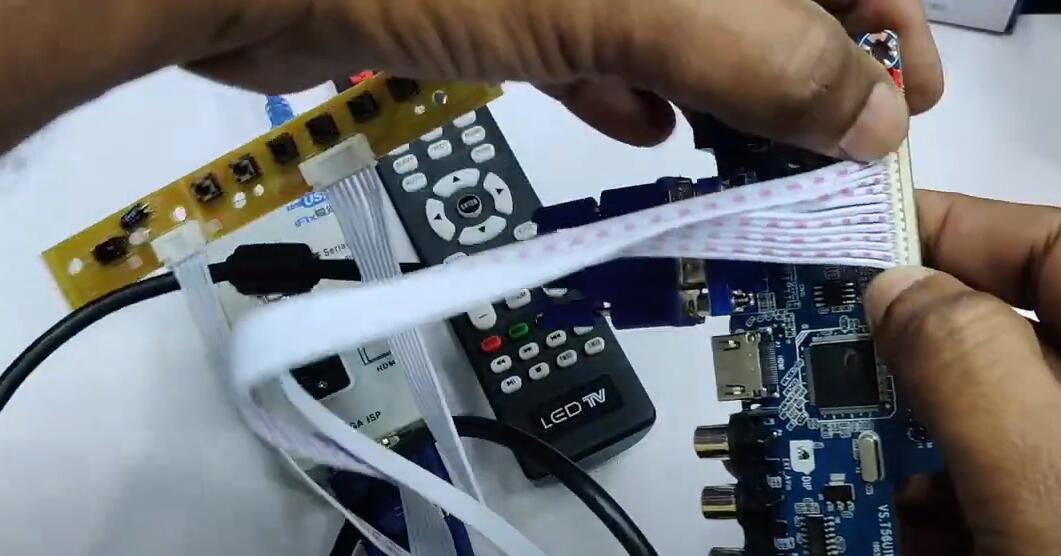

Connect keyboard remote sensor to T56U44.2 TV motherboard

RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (4) RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (5)

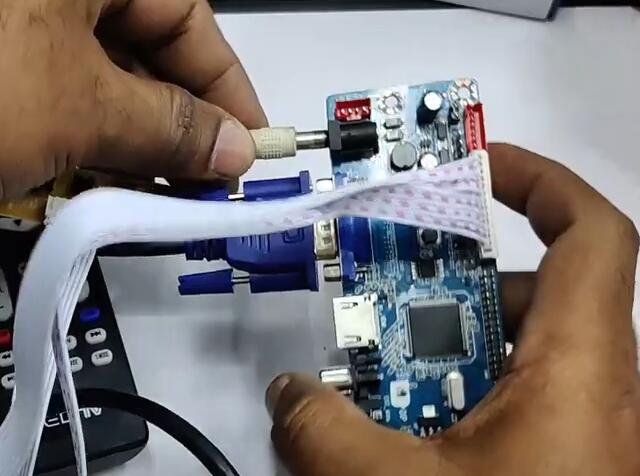

And power motherboard with a DC 12V 2Amp supply

RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (6)

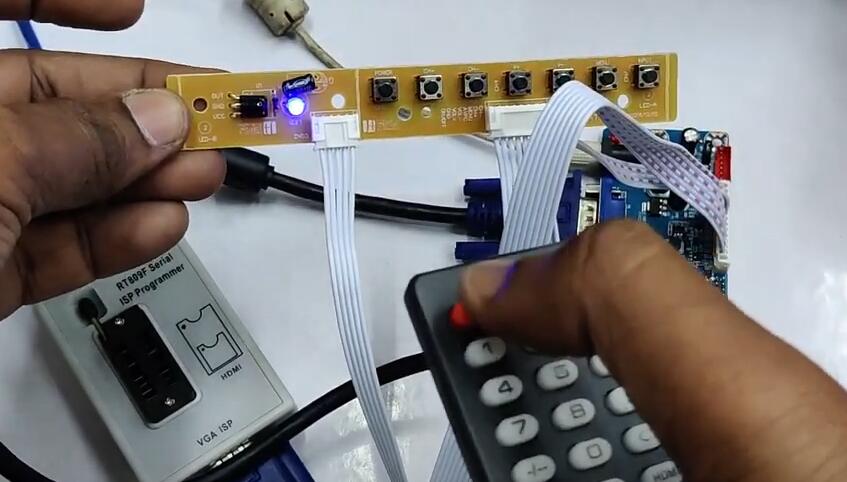

Use remote control to release StandBy

RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (7)

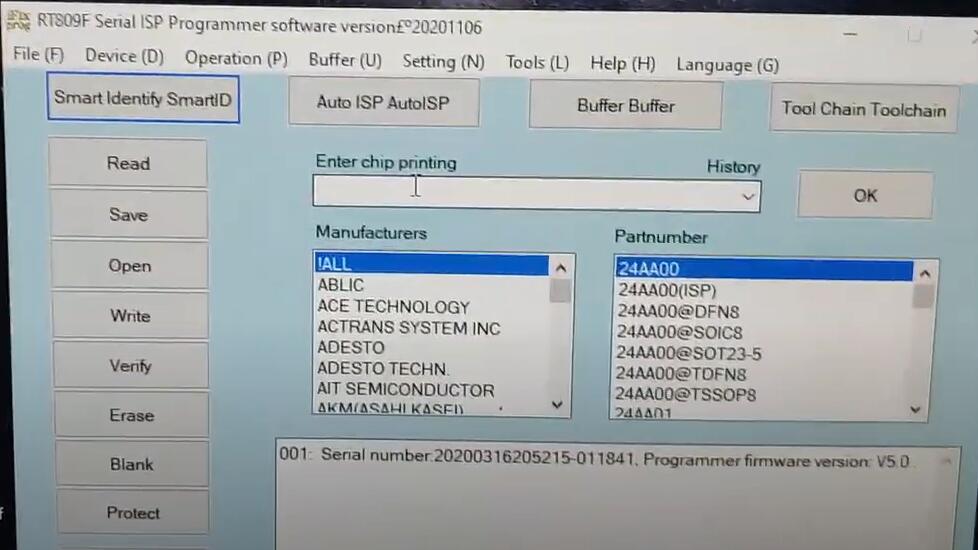

Now here run RT809F programmer software

Click “Auto ISP AutoISP” button

RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (8)

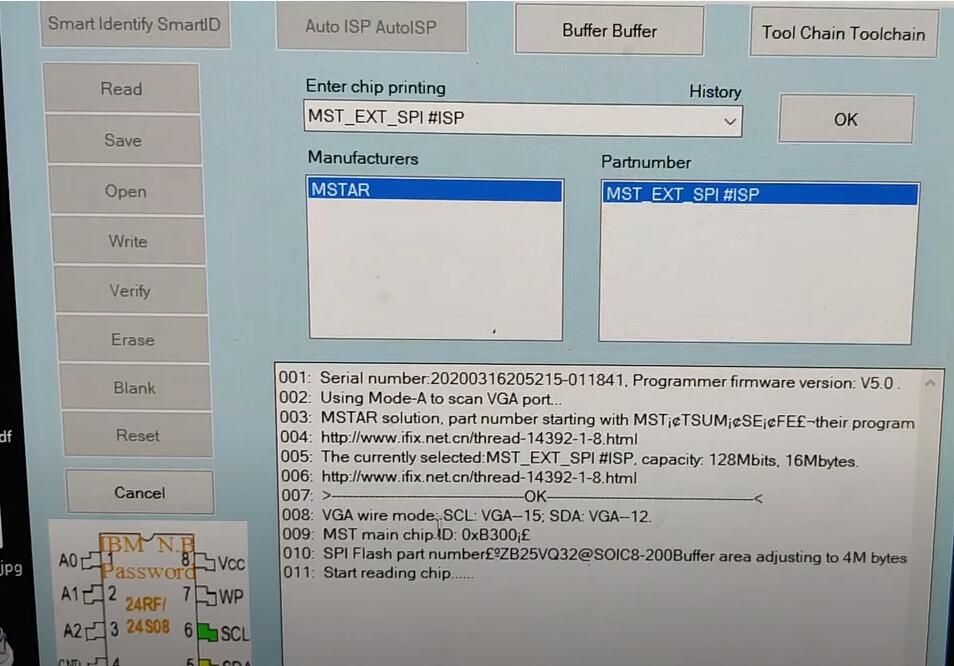

Then click “Read” button,it show detail ZB25VQ32 chip

RT809F Program VS T56U11.2 TV Motherboard by VAG Cable (9)

Wait reading process done,then save the data file.

And for write step,just click “Open” button to load bin file and click “Write” to start it.
