What is RT809F Serial BIOS ISP Programmer?
RT809F Serial BIOS ISP Programmer is universal programmer for LCD/LED,laptop,PC motherboard,DVD,routers,DVRs…It can read write data from/in chips with high speed.RT809F is a kind of cost-effective, reliable and fast universal programmer series, suitable for all the computers or laptops based on Pentium IV processors or the better processors. When working it can c-mmunicate with the USB2.0 fast port of computer directly, with driver program inside software, which makes installing operation more convenient.
RT809F Serial BIOS ISP Programmer Features:
1 Supports computer motherboards,laptop,LCD,routers chips
2 Supported DDR1/DDR2/DDR3 SPD memory chip
3 Supporting notebook 8 feet, 14 feet password chip and battery chip
4 Supports 24 full range IIC bus EEPROM memory
5 Supporting a full range of SPI bus 25,26 FLASH memory
6 Supporting 93 full range Micro Wire bus memory.
7 Exclusive support RTD2120 chip dual-BANK online read and writes functions
8 Supports LCD monitors and LCD TVs DDC-EDID data read and write online
9 Support laptop screen EDID data read and write online
RT809F Serial BIOS ISP Programmer Functions:
Read chips memory data files
Write chips memory data files
Identify chip model automatically
Capacity up to 256Mbit.
RT809F Serial BIOS ISP Programmer External Port Instruction:

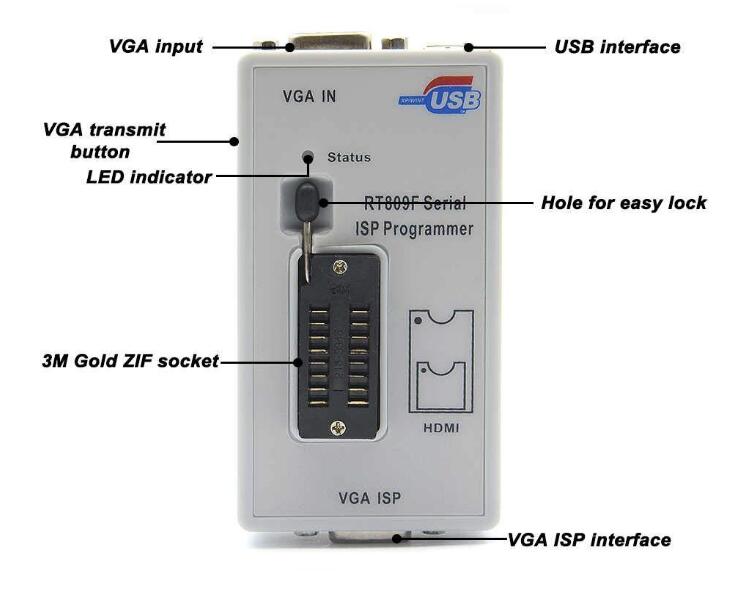

Left and right lateral view
Port instruction
VGA ISP can be used as VGA signal output, be connected with the VGA port of the board when flashing.
VGA IN is the VGA signal input, can be connected with the computer graphics.
When unconnected, VGA ISP will output the VGA signal produced by itself; When connected, VGA ISP output the computer graphics signal;

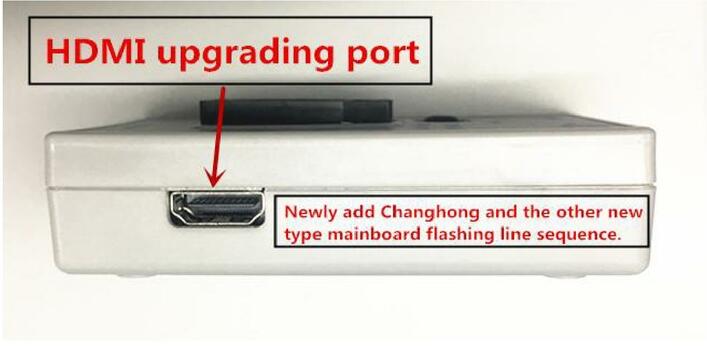

HDMI”Digital high-definition interface”can connect with the HMDI port of the flashing board.
RT809F Serial BIOS ISP Programmer Support Chips Models:
Supporting Windows XPWindows Vista, Windows 7, windows 8 and windows 10; with low-power consumption, can be used as VGA signal generator, easy to repair; Support 24/25/93/95 series serial SPI Flash. EEPROM ofline read and write.
Support 26/27/28/29/30/39/49/50 series NOR Flash/PROM read and write; Support TSOP48 and BGA footprint NAND Flash parameter automatic identification and ofline reading; Support the mainstream device, including E/EPROM, MCU, EC, SPI NOR flash, parallel NOR flash, SPI NAND, etc; NAND_AUTO can identify most of the NAND to read and write; I2C/serial port ISP has strong function, compatible with most of the LCD chip scheme, can check the printing information on line and read and write on line; NOR/NAND chip, can read and write the EC chip of laptop on line or off line; Support the IT8/KB90/NPCE/NEC16 series of laptop mainboard’s EC chip to read and write; High-speed USB port, USB driver with WHQL certification, the reading and writing speed can be as much as 25MB/S; Full driver structure, free software upgrade, the universal socket to reduce the using cost for the user.
LCD display and TV motherboard
TPV,Proview,Samsung,LG,ACER,LENOVO,HP,IBM,BENQ,HKC,Hisense,Skyworth,Konka,Changhong, TCL,Haier,Prima and other major brands,NOVATEK,MTK,MST,Genesis,TSUM,SE,FT,REALTEK the Winbond WELTEND,MySoN,China and Asia micro and PIXELWORKS chipset solution
Support Samsung,Philips,AOC,BENQ,NESO use NT68F63/NT68F632/NT68F633 series MCU and WT61P4 models.It supports SE1059 series’ reading and writing. Easy to solve samsung’s balck screen problems
Support WINBOND series MCU’s programming online, such as W78E65P-40,it can replcace the MCU of M6759,SM5964,SM89516,P89C51RD andTP2804 which are very easy be damaged.
Support MTK series LCD and DVD program online. Such as MT2389,MT1379,MT8223 and 8226 etc.
Support SUNPLUS series DVD program online. Such as 8202D 8202S,8202L,8281 and 8200 etc.
Attention:The chip with 32 pins or more need the PEB-1 expansion board together to do the writing.
RT809F Serial BIOS ISP Programmer Installation Requires:
Minimum system configuration:
>Pentium IV and above compatibles, desktop or laptop computer, at least a universal serial main line port conform to USB2.0 high-speed standard.
>Windows XP/Vista operating system.
>The hard disk with at least 1G free space.
RT809F Serial BIOS ISP Programmer Software Download
Link 1:
RT809F Serial BIOS ISP Programmer download here
Link 2:
https://mega.nz/file/WPQjjaJB#ajMjE3GnP9mHxqJ86sL3tBNsIxTp_GZ1Mlwpol-wY1I
RT809F Programmer DIP Encapsulation Chip Position:
Background position button

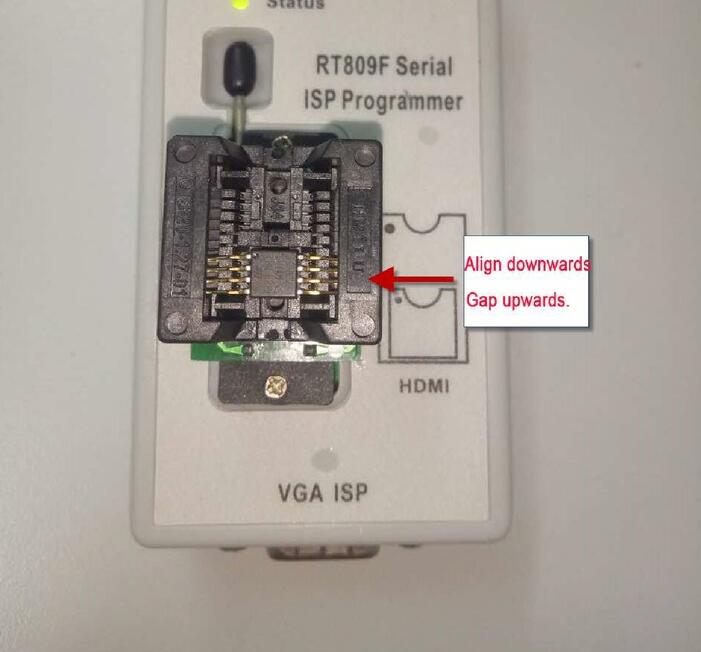

Gap upwards
The position of SOP encapsulation on the bounce board.
Align downwards
Gap upwards
The position of SOP encapsulation on the board.

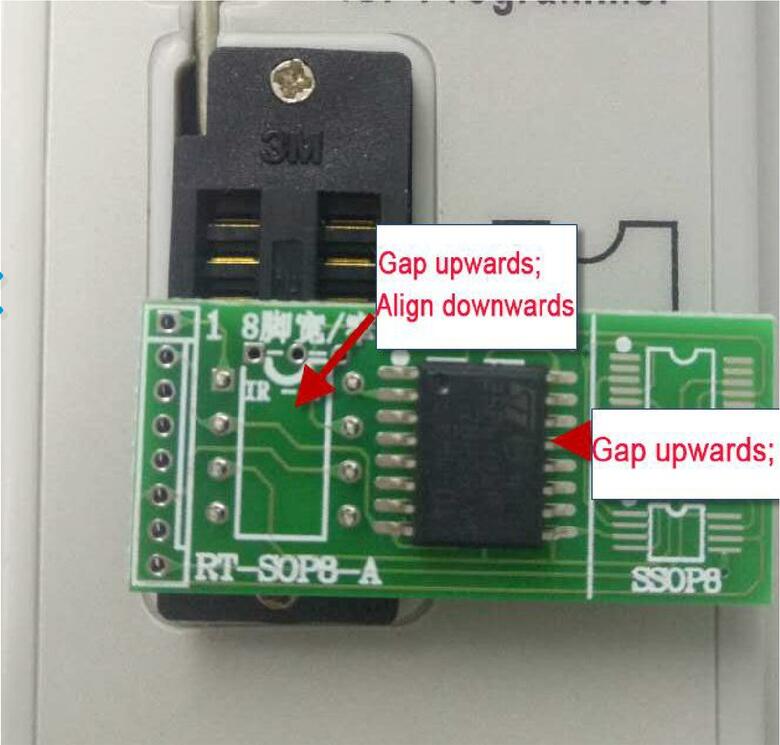

Switch board’s gap upwards,align downwards
The position of QSOP 16 pins encapsulation on the socket.

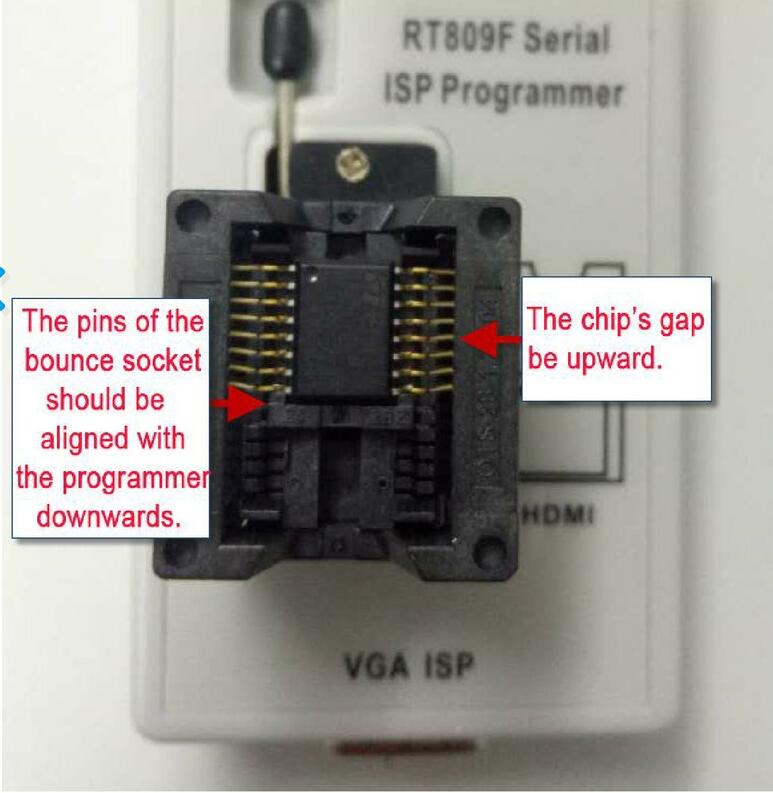

The pins of the bounce socket should be aligned with the programmer downwards.
The chip gap be upward
The position of QSOP 16 pins encapsulation on the board.
Gap upwards,align downwards
Gap upwards
If the power supply of the chip is 1.8Vit need to add the board.
DIP 8 encapsulation

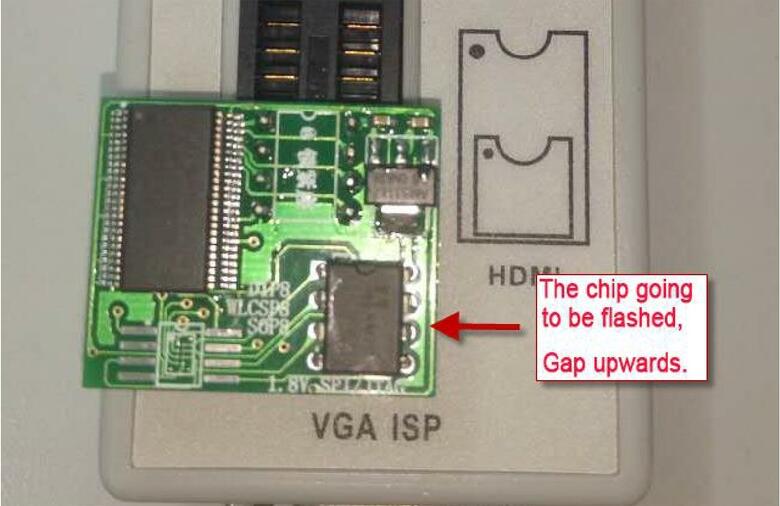

The chip going to be flashed
SOP 8 encapsulation

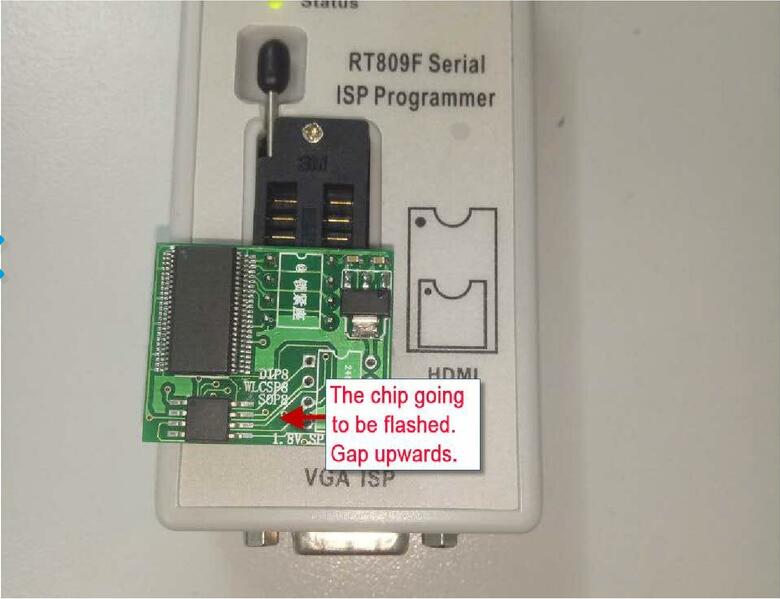

The chip going to be flashed
Gap upwards
