This instruction show you guide on how to use GQ-4X programmer to read and write MC27C800 chip.
Procedures:
Connect GQ-4X programmer to PC,then run software.
Click “Device” on menu bar
Select “Device List”
Now input MC27800 in “Search Device”,then click “Select”

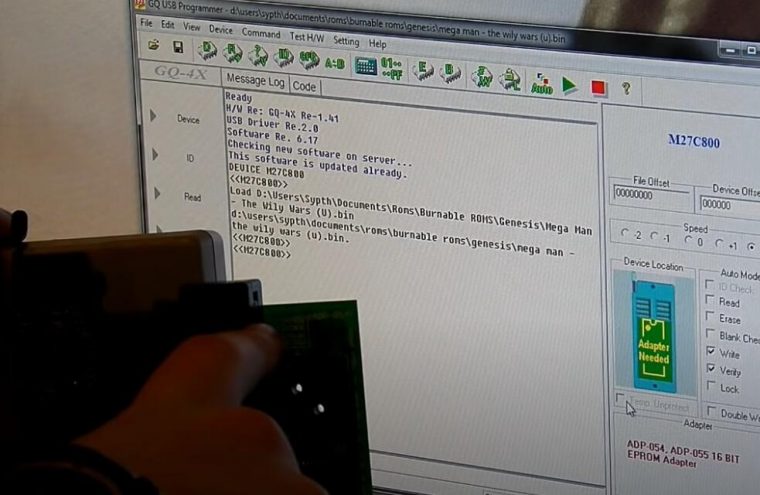

Now it will show you detail about M27C800 chip
It prompt that you need adapter:ADP-054,ADP-055 16 BIT EPROM adapter
So please use adapter put M27C800 chip
Here if you need blank the chip,recommend you use a EPROM Eraser programmer to blank it.
After then click “File”–>”Open”
Load file you want to write in MC27C800
Set file format,read mode…
Click “Write” button
Verifying automatically
Done!
