Week ago,chipprogrammer.info share the guide on how to use EZP2019 programmer to read and write MX25L3206E chip,today in this instruction another tool TL866II Plus programmer feedback on MX25L3206E chip programmer come.
Procedures:
Connect cable between PC and TL866II programmer

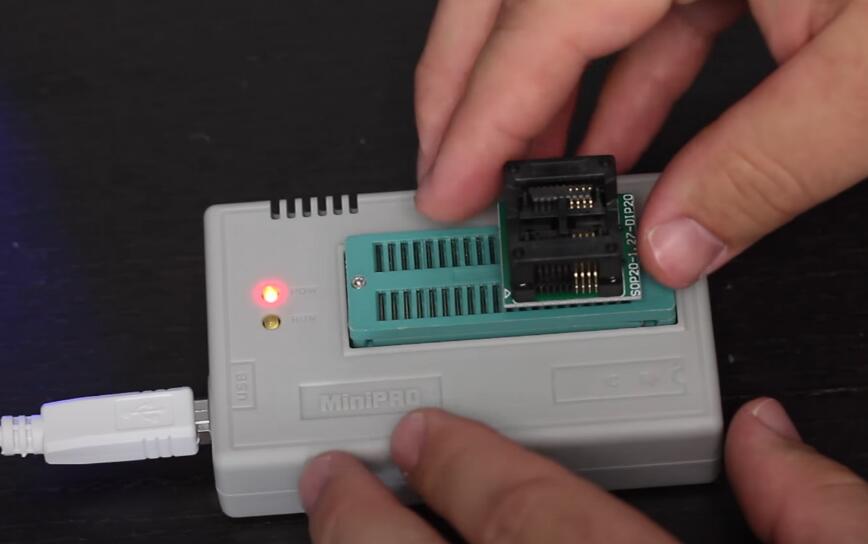

Then install SOP20-1 adapter on TL866 programmer

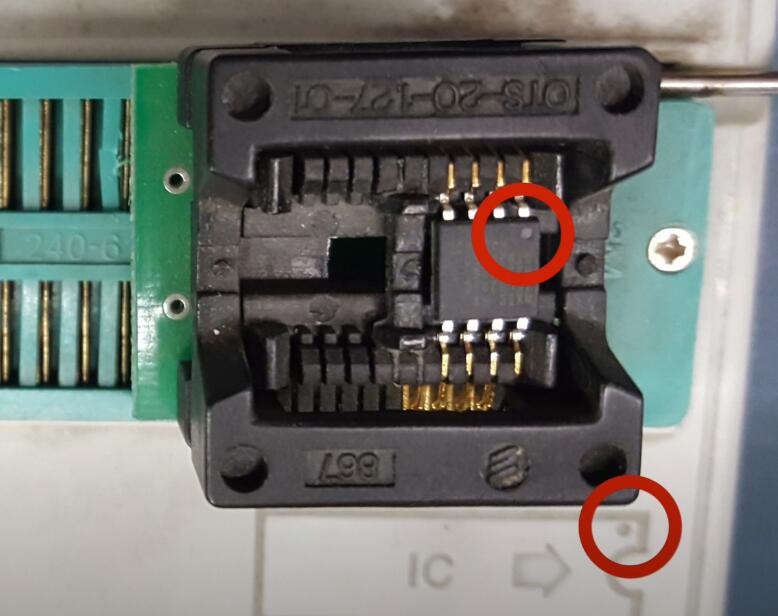

Put MX25L3206E chip in the SOP20-1 adapter socket

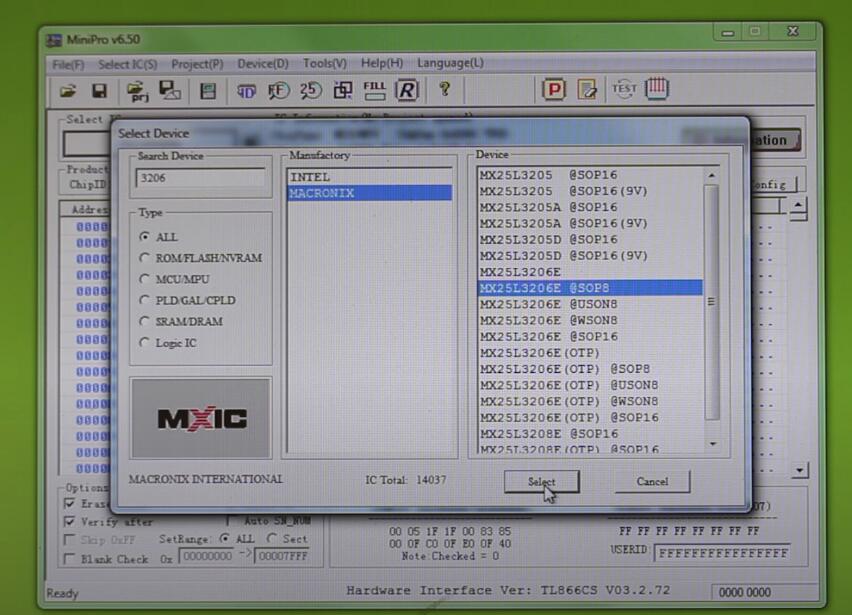

Run TL866II programmer software,then select IC model
Input “3206” and select “MACRONIX”
Then select “MX25L3206E @SOP8”
Read data from MX25L3206E

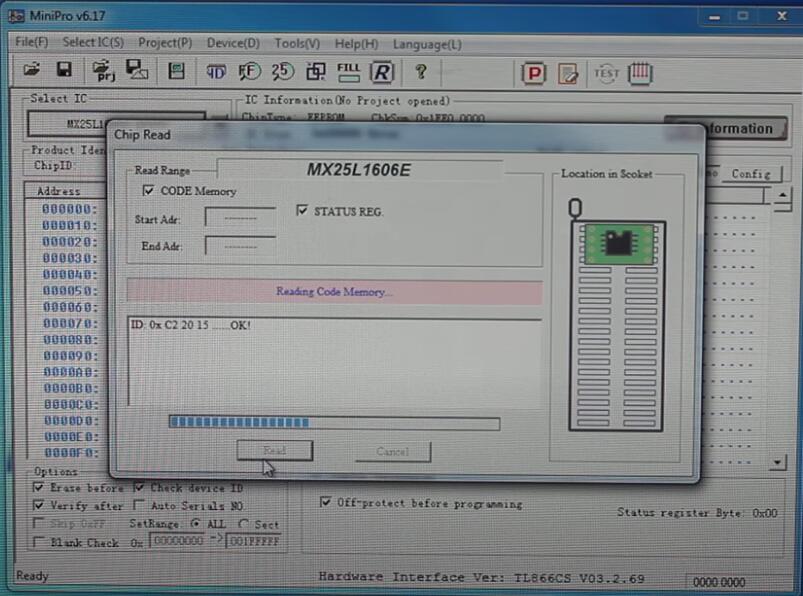

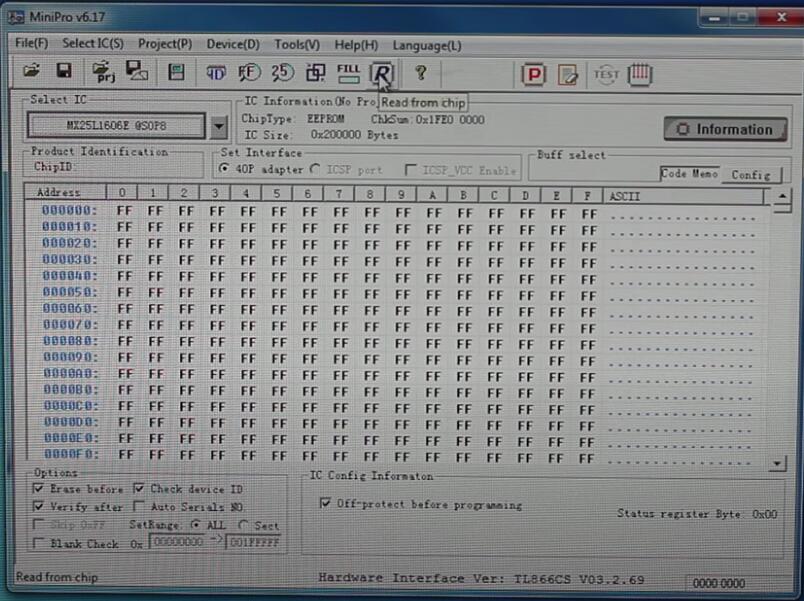

Click “Read” button
Wait process

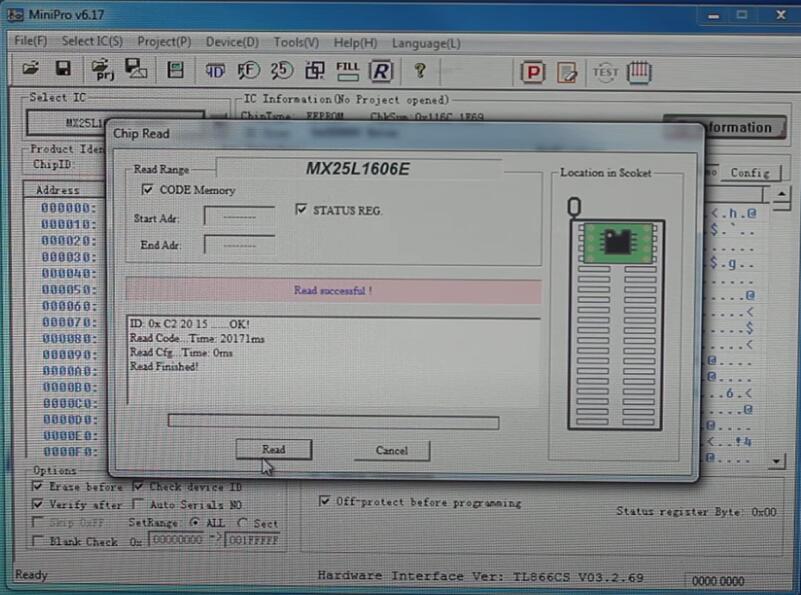

Read finish
Program/write data to MX25L3206E

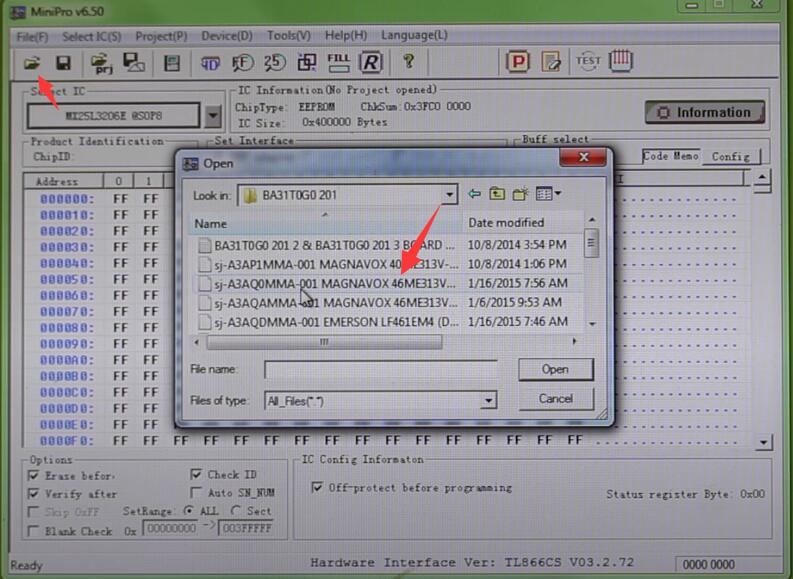

Click “Open” button,then select data file you want to program

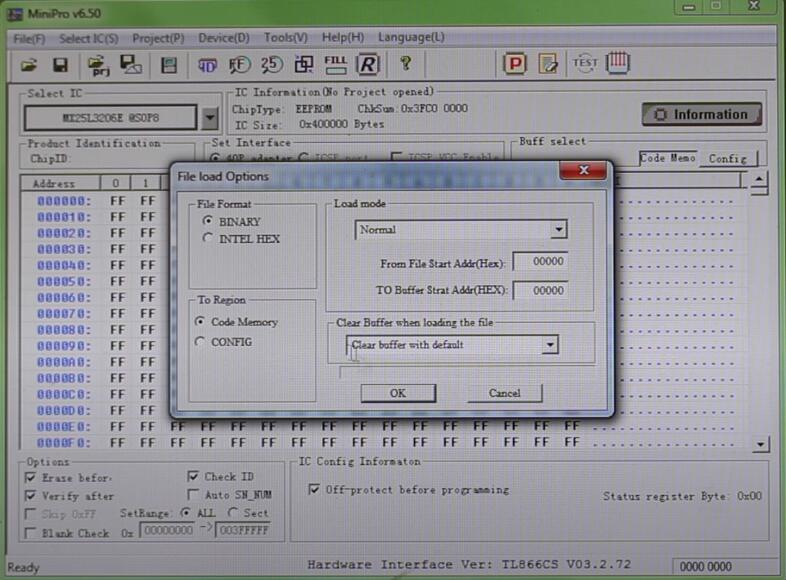

File load options,click “OK”

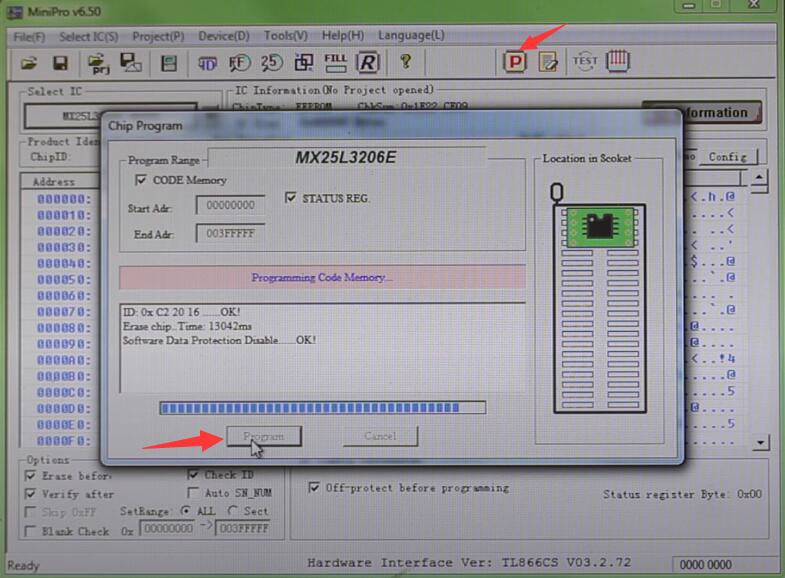

Click “Program” button on menu bar,then click “Program” again to start programming
Wait process

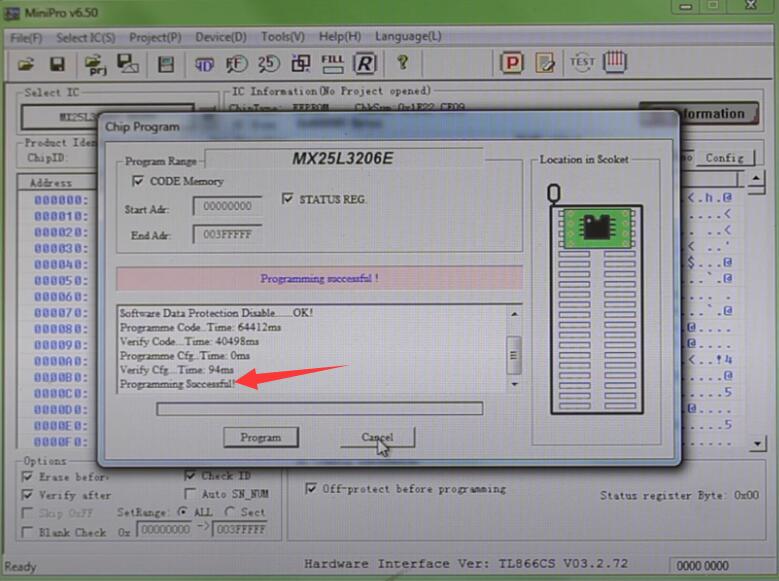

Programming successful.
